Veterinary Implants & Instruments Catalog

Veterinary Implants Catalog download link is given below.

If you unable to download our Veterinary Implants Catalog then please email at rajsurgitech2022@gmail.com .

We will send you our latest Catalog on your email id within 48 hours.

Explore More

Products list in our Veterinary Implants Catalog

Below are list of products from Veterinary Implants Catalog.

Bone Plates from Veterinary Implants Catalog

2 mm Locking Cuttable Plates
2.4 mm Locking Cuttable Plates
2.7 mm Locking Cuttable Plates
2.7 mm Locking Cuttable Plates

2 mm Locking Cuttable T Plates
2.4 mm Locking Cuttable T Plates
2.7 mm Locking Cuttable T Plates
3.5 mm Locking Cuttable T Plates

2 mm Locking Supracondylar Plates
2.4 mm Locking Supracondylar Plates
2.7 mm Locking Supracondylar Plates
3.5 mm Locking Supracondylar Plates

2 mm Locking Compression Plates
2.4 mm Locking Compression Plates
2.7 mm Locking Compression Plates
3.5 mm Locking Compression Plates
5 mm Locking Narrow Compression Plates
5 mm Locking Broad Compression Plates

2.4 mm TPLO Plate
2.7 mm TPLO Plate
3.5 mm TPLO Plate

2.7 mm Locking Reconstruction Plates
2.7 mm Locking Reconstruction Plates Curved
3.5 mm Locking Reconstruction Plates
3.5 mm Locking Reconstruction Plates Curved

2 mm Locking T Plates, 2 Head Holes
2.4 mm Locking T Plates, 2 Head Holes
2.7 mm Locking T Plates, 2 Head Holes
3.5 mm Locking T Plates, 2 Head Holes

2 mm Locking T Plates Clover Leaf
2.4 mm Locking T Plates Clover Leaf
2.7 mm Locking T Plates Clover Leaf
3.5 mm Locking T Plates Clover Leaf

2/2.7 mm Locking Pancarpal Arthrodesis Plate
2.7/3.5 mm Locking Pancarpal Arthrodesis Plate

2/2.7 Locking Pantarsal Arthrodesis Plates
2.7/3.5 Locking Pantarsal Arthrodesis Plates

2 mm Dynamic Compression Plates
2.4 mm Dynamic Compression Plates
2.7 mm Dynamic Compression Plates
3.5 mm Dynamic Compression Plates
4.5 mm Narrow Dynamic Compression Plates
4.5 mm Broad Dynamic Compression Plates

2 mm Locking Acetabular Plates
2.4 mm Locking Acetabular Plates
2.7 mm Locking Acetabular Plates
3.5 mm Locking Acetabular Plates

Toggle Pins
Suture Buttons

6/7/8 mm Veterinary Straight Nails

6/7/8 mm Veterinary Angled Nails

Bone Screws from Veterinary Implants Catalog

2 mm Locking Cortical Screws
2.4 mm Locking Cortical Screws
2.7 mm Locking Cortical Screws
3.5 mm Locking Cortical Screws
5 mm Locking Cortical Screws

2 mm Cortical Screws
2.4 mm Cortical Screws
2.7 mm Cortical Screws
3.5 mm Cortical Screws
4.5 mm Cortical Screws

3.5 mm Locking Cancellous Screws
4 mm Locking Cancellous Screws
5 mm Locking Cancellous Screws
6.5 mm Locking Cancellous Screws

3.5 mm Locking Cancellous Screws
4 mm Locking Cancellous Screws
6.5 mm Locking Cancellous Screws

MonoAxial Screws
MonoAxial Reduction Screws
PolyAxial Screws
PolyAxial Reduction Screws



Instruments Set from Veterinary Implants Catalog

  1. 2.4/2.7 mm Locking Plates Instruments Set
  2. 3.5 mm Locking Plates Instruments Set
  3. 5 mm Locking Plates Instruments Set
  4. Veterinary Nail Instruments Set
  5. Spine Instruments Set

Products Details in our Veterinary Implants Catalog

In our Veterinary Implants Catalog there are different types of Plates, Screws, Nail, Instruments Set etc. If you unable to find your required products then email us at info@vastortho.com or call/ WhatsApp Chat at +91 0123456789.

Locking Cuttable Plates

Locking Cuttable Plates are available in four sizes:

  • 2 mm Locking Cuttable Plates
  • 2.4 mm Locking Cuttable Plates
  • 2.7 mm Locking Cuttable Plates
  • 3.5 mm Locking Cuttable Plates

Plates Width:
2.0 mm plate : 5 mm width
2.4 mm plate : 6 mm width
2.7 mm plate : 7 mm width
3.5 mm plate : 9 mm width

Holes:
2.0 mm plate : 20 holes
2.4 mm plate : 20 holes
2.7 mm plate : 20 holes
3.5 mm plate : 20 holes

Holes Spacing:
2.0 mm plate : 6 mm space
2.4 mm plate : 7 mm space
2.7 mm plate : 8 mm space
3.5 mm plate : 11 mm space

Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness

Screws uses:
2.0 mm plate : 2 mm locking screws
2.4 mm plate : 2.4 mm locking screws
2.7 mm plate : 2.7 mm locking screws
3.5 mm plate : 3.5 mm locking screws

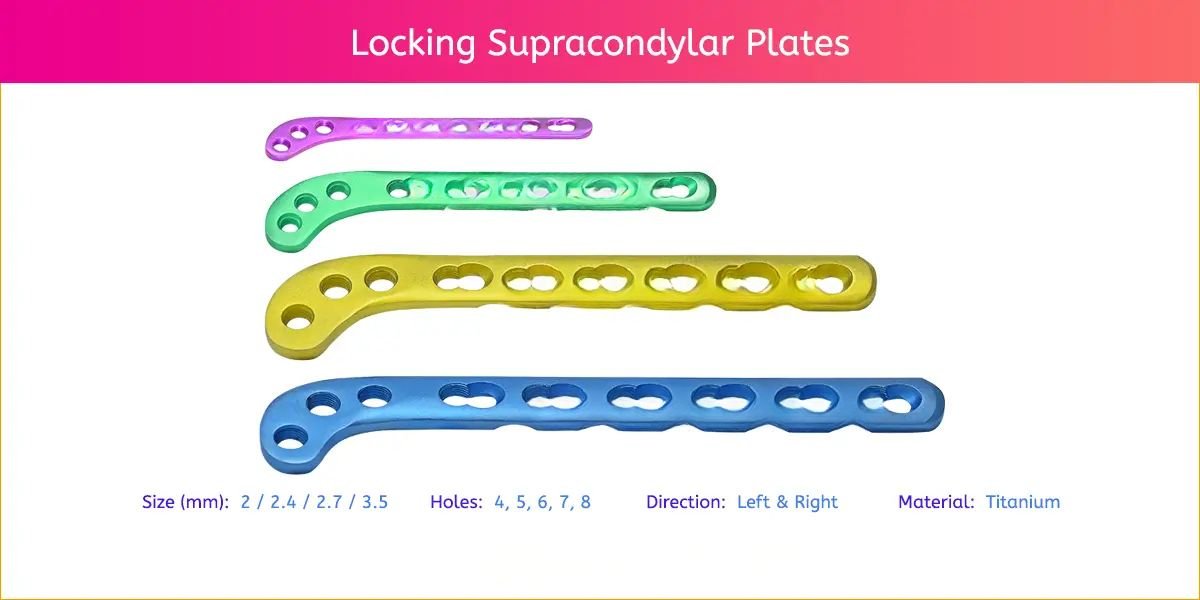

Locking Supracondylar Plates

Locking Supracondylar Plates are available in four sizes:

  • 2 mm Locking Supracondylar Plates
  • 2.4 mm Locking Supracondylar Plates
  • 2.7 mm Locking Supracondylar Plates
  • 3.5 mm Locking Supracondylar Plates

Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width

Holes:
2.0 mm plate : 4, 5, 6, 7, 8 holes
2.4 mm plate : 4, 5, 6, 7, 8 holes
2.7 mm plate : 4, 5, 6, 7, 8 holes
3.5 mm plate : 4, 5, 6, 7, 8 holes

Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 9 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space

Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness

Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws

Locking Compression Plates

Locking Compression Plates are available in six sizes:

  • 2 mm Locking Compression Plates
  • 2.4 mm Locking Compression Plates
  • 2.7 mm Locking Compression Plates
  • 3.5 mm Locking Compression Plates
  • 5 mm Locking Narrow Compression Plates
  • 5 mm Locking Broad Compression Plates

Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 9 mm width
3.5 mm plate : 11 mm width
5.0 mm plate : 13.5 mm width
5.0 mm Broad plate : 17.5 mm width

Holes:
2.0 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.4 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.7 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
3.5 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
5.0 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
5.0 mm Broad plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes

Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 9 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space
5.0 mm plate : 18 mm space
5.0 mm Broad plate : 18 mm space

Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
5.0 mm plate : 5 mm locking screws, 4.5 mm Cortical screws, 5 mm Cancellous screws
5.0 mm Broad plate : 5 mm locking screws, 4.5 mm Cortical screws, 5 mm Cancellous screws

Locking TPLO Plates Veterinary Implants

Locking TPLO Plates are available in four sizes:

  • 2.4 mm Locking TPLO Plate
  • 2.7 mm Locking TPLO Plate
  • 3.5 mm Locking TPLO Plate
  • 3.5 mm Locking Broad TPLO Plate

Plates Width:
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
3.5 mm broad plate : 13 mm width

Holes:
2.4 mm plate : 3, 4 holes
2.7 mm plate : 3, 4 holes
3.5 mm plate : 3, 4 holes
3.5 mm broad plate : 4 holes

Plate length:
2.4 mm plate : 50/58 mm
2.7 mm plate : 55/64 mm
3.5 mm plate : 67/77 mm
3.5 mm broad plate : 75 mm

Plates Thickness:
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness
3.5 mm broad plate : 3 mm thickness

Screws uses:
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
3.5 mm broad plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws

Locking Reconstruction Plates

Locking Reconstruction Plates are available in four sizes:

  • 2.7 mm Locking Reconstruction Plates Straight
  • 2.7 mm Locking Reconstruction Plates Curved
  • 3.5 mm Locking Reconstruction Plates Straight
  • 3.5 mm Locking Reconstruction Plates Curved

Plates Width:
2.7 mm Straight plate : 8 mm width
2.7 mm curved plate : 8 mm width
3.5 mm Straight plate : 10 mm width
3.5 mm Curved plate : 10 mm width

Holes:
2.7 mm Straight plate : 6, 8, 10, 12, 14, 16, 18 holes
2.7 mm curved plate : 6, 8, 10, 12, 14, 16, 18 holes
3.5 mm Straight plate : 6, 8, 10, 12, 14, 16, 18 holes
3.5 mm Curved plate : 6, 8, 10, 12, 14, 16, 18 holes

Holes Spacing:
2.7 mm Straight plate : 8 mm width
2.7 mm curved plate : 8 mm width
3.5 mm Straight plate : 12 mm width
3.5 mm Curved plate : 12 mm width

Plates Thickness:
2.7 mm Straight plate : 2.5 mm thickness
2.7 mm curved plate : 2.5 mm thickness
3.5 mm Straight plate : 3 mm thickness
3.5 mm Curved plate : 3 mm thickness

Screws uses:
2.7 mm Straight plate : 2.7 mm locking screws, 2.7 mm Cortical screws
2.7 mm curved plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm Straight plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws
3.5 mm Curved plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws

Locking T Plates 2 Head Holes

Locking T Plates 2 Head Holes are available in four sizes:

  • 2 mm Locking T Plates 2 Head Holes Plates
  • 2.4 mm Locking T Plates 2 Head Holes Plates
  • 2.7 mm Locking T Plates 2 Head Holes Plates
  • 3.5 mm Locking T Plates 2 Head Holes Plates

Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width

Holes:
2.0 mm plate : 3, 4, 5, 6 holes
2.4 mm plate : 3, 4, 5, 6 holes
2.7 mm plate : 3, 4, 5, 6 holes
3.5 mm plate : 3, 4, 5, 6 holes

Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 10 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space

Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness

Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws

Locking T Plates Clover Leaf

Locking T Plates Clover Leaf are available in four sizes:

  • 2 mm Locking T Plates 2 Head Holes Plates
  • 2.4 mm Locking T Plates 2 Head Holes Plates
  • 2.7 mm Locking T Plates 2 Head Holes Plates
  • 3.5 mm Locking T Plates 2 Head Holes Plates

Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width

Holes:
2.0 mm plate : 3, 4, 5, 6 holes
2.4 mm plate : 3, 4, 5, 6 holes
2.7 mm plate : 3, 4, 5, 6 holes
3.5 mm plate : 3, 4, 5, 6 holes

Holes Spacing:
2.0 mm plate : 8 mm space
2.4 mm plate : 10 mm space
2.7 mm plate : 11 mm space
3.5 mm plate : 13 mm space

Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3 mm thickness

Screws uses:
2.0 mm plate : 2 mm locking screws, 2 mm Cortical screws
2.4 mm plate : 2.4 mm locking screws, 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm locking screws, 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm locking screws, 3.5 mm Cortical screws, 4 mm Cancellous screws

Locking Pancarpal Arthrodesis Plates

Locking Pancarpal Arthrodesis Plates are available in three sizes:

  • 2/2.4 mm Locking Pancarpal Arthrodesis Plates
  • 2.4/2.7 mm Locking Pancarpal Arthrodesis Plates
  • 2.7/3.5 mm Locking Pancarpal Arthrodesis Plates

Plates Length:
2/2.4 mm Plates : 90 mm (9 holes), 97 mm (11 holes)
2.4/2.7 mm Plates : 97 mm (9 holes), 115 mm (11 holes)
2.7/3.5 mm Plates : 110 mm (9 holes), 120 mm (11 holes)

Holes:
2/2.4 mm Plates : 9 and 11 Holes
2.4/2.7 mm Plates : 9 and 11 Holes
2.7/3.5 mm Plates : 9 and 11 Holes

Plates Thickness:
2/2.4 mm Plates : 2.5 mm thickness
2.4/2.7 mm Plates : 2.5 mm thickness
2.7/3.5 mm Plates : 3 mm thickness

Screws uses:
2/2.4 mm Plates : 2 mm locking screws, 2 mm Cortical screws, 2.4 mm locking screws, 2.4 mm Cortical screws
2.4/2.7 mm Plates : 2.4 mm locking screws, 2.4 mm Cortical screws, 2.7 mm locking screws, 2.7 mm Cortical screws
2.7/3.5 mm Plates : 2.7 mm locking screws, 2.7 mm Cortical screws, 3.5 mm locking screws, 3.5 mm Cortical screws

Locking Pantarsal Arthrodesis Plates

Locking Pantarsal Arthrodesis Plates Veterinary Implants are available in three sizes:

  • 2.4/2.7 mm Locking Pantarsal Arthrodesis Plates
  • 2.7/3.5 mm Locking Pantarsal Arthrodesis Plates

Plates Length:
2/2.4 mm Plates : 90 mm
2.4/2.7 mm Plates : 100 mm
2.7/3.5 mm Plates : 120 mm

Holes:
2/2.4 mm Plates : 9 holes
2.4/2.7 mm Plates : 9 holes
2.7/3.5 mm Plates : 9 holes

Plates Thickness:
2/2.4 mm Plates : 2.5 mm thickness
2.4/2.7 mm Plates : 2.5 mm thickness
2.7/3.5 mm Plates : 3 mm thickness

Screws uses:
2/2.4 mm Plates : 2 mm locking screws, 2 mm Cortical screws, 2.4 mm locking screws, 2.4 mm Cortical screws
2.4/2.7 mm Plates : 2.4 mm locking screws, 2.4 mm Cortical screws, 2.7 mm locking screws, 2.7 mm Cortical screws
2.7/3.5 mm Plates : 2.7 mm locking screws, 2.7 mm Cortical screws, 3.5 mm locking screws, 3.5 mm Cortical screws

Dynamic Compression Plates

Dynamic Compression Plates are available in six sizes:

  • 2 mm Dynamic Compression Plates
  • 2.4 mm Dynamic Compression Plates
  • 2.7 mm Dynamic Compression Plates
  • 3.5 mm Dynamic Compression Plates
  • 4.5 mm Narrow Dynamic Compression Plates
  • 4.5 mm Narrow Dynamic Compression Plates

Plates Width:
2.0 mm plate : 6 mm width
2.4 mm plate : 7 mm width
2.7 mm plate : 8 mm width
3.5 mm plate : 10 mm width
5.0 mm plate : 12 mm width
5.0 mm Broad plate : 16 mm width

Holes:
2.0 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.4 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
2.7 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
3.5 mm plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
4.5 mm Narrow plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes
4.5 mm Broad plate : 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18 holes

Holes Spacing:
2.0 mm plate : 6 mm space
2.4 mm plate : 7 mm space
2.7 mm plate : 8 mm space
3.5 mm plate : 12 mm space
4.5 mm Narrow plate : 16 mm space
4.5 mm Broad plate : 16 mm space

Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2.5 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 3.5 mm thickness
4.5 mm Narrow plate : 4 mm thickness
4.5 mm Broad plate : 5 mm thickness

Screws uses:
2.0 mm plate : 2 mm Cortical screws
2.4 mm plate : 2.4 mm Cortical screws
2.7 mm plate : 2.7 mm Cortical screws
3.5 mm plate : 3.5 mm Cortical screws, 4 mm Cancellous screws
4.5 mm Narrow plate : 4.5 mm Cortical screws, 5 mm Cancellous screws
4.5 mm Broad plate : 4.5 mm Cortical screws, 5 mm Cancellous screws

Locking Acetabular Plates Veterinary Implants

Locking Acetabular Plates Veterinary Implants are available in four sizes:

  • 2 mm Locking Acetabular Plates Plates
  • 2.4 mm Locking Acetabular Plates Plates
  • 2.7 mm Locking Acetabular Plates Plates
  • 3.5 mm Locking Acetabular Plates Plates


Plates Width:
2.0 mm plate : 4 mm width
2.4 mm plate : 5 mm width
2.7 mm plate : 7 mm width
3.5 mm plate : 10 mm width

Holes:
2.0 mm plate : 4 holes
2.4 mm plate : 6 holes
2.7 mm plate : 6 holes
3.5 mm plate : 6 holes

Plate Length:
2.0 mm plate : 28 mm length
2.4 mm plate : 38 mm length
2.7 mm plate : 52 mm length
3.5 mm plate : 60 mm length

Plates Thickness:
2.0 mm plate : 2 mm thickness
2.4 mm plate : 2 mm thickness
2.7 mm plate : 2.5 mm thickness
3.5 mm plate : 2.5 mm thickness

Screws uses:
2.0 mm plate : 2 mm locking screws
2.4 mm plate : 2.4 mm locking screws
2.7 mm plate : 2.7 mm locking screws
3.5 mm plate : 3.5 mm locking screws

Toggle Pins

Toggle Pins are available in three sizes:

  • 3 mm Toggle Pins
  • 3.5 mm Toggle Pins
  • 4 mm Toggle Pins

Holes Diameter:
3 mm Toggle Pins : 1.2 mm
3.5 mm Toggle Pins : 1.5 mm
4 mm Toggle Pins : 2 mm

Pins Length:
3 mm Toggle Pins : 10 mm
3.5 mm Toggle Pins : 15 mm
4 mm Toggle Pins : 20 mm

Suture Buttons

2 Holes Suture Buttons:

thickness : 2 mm
width : 4 mm
length : 10 mm
hole dia : 1.5 mm

4 Holes Suture Buttons:

thickness : 2 mm
width : 4 mm
length : 14 mm
first & last hole dia : 1.1 mm
two middle hole dia : 1.5 mm
